arq_channels.h File Reference

#include <stddef.h>
#include "chan.h"
#include "arq_events.h"

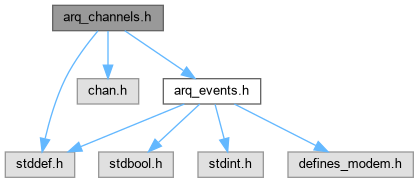

Include dependency graph for arq_channels.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	arq_channel_bus_t
	ARQ message-bus channels connecting TCP, modem, and ARQ workers. More...

Macros
#define	ARQ_CH_CAP_TCP_CMD   64
#define	ARQ_CH_CAP_TCP_PAYLOAD   128
#define	ARQ_CH_CAP_MODEM_FRAME   128
#define	ARQ_CH_CAP_MODEM_METRICS   128
#define	ARQ_CH_CAP_MODEM_TX   128
#define	ARQ_CH_CAP_TCP_STATUS   128
#define	ARQ_CH_CAP_SHUTDOWN   1

Functions
int	arq_channel_bus_init (arq_channel_bus_t *bus)
	Initialize ARQ channel bus.
void	arq_channel_bus_close (arq_channel_bus_t *bus)
	Close all ARQ channel endpoints to stop producers/consumers.
void	arq_channel_bus_dispose (arq_channel_bus_t *bus)
	Dispose ARQ channel resources.
int	arq_channel_bus_try_send_cmd (arq_channel_bus_t *bus, const arq_cmd_msg_t *msg)
	Try to enqueue a TCP control command into ARQ bus.
int	arq_channel_bus_try_send_payload (arq_channel_bus_t *bus, const uint8_t *data, size_t len)
	Try to enqueue TCP payload bytes into ARQ bus.
int	arq_channel_bus_recv_cmd (arq_channel_bus_t *bus, arq_cmd_msg_t *msg)
	Receive next TCP command from ARQ bus.
int	arq_channel_bus_recv_payload (arq_channel_bus_t *bus, arq_bytes_msg_t *msg)
	Receive next TCP payload message from ARQ bus.

Macro Definition Documentation

ARQ_CH_CAP_MODEM_FRAME

#define ARQ_CH_CAP_MODEM_FRAME   128

ARQ_CH_CAP_MODEM_METRICS

#define ARQ_CH_CAP_MODEM_METRICS   128

ARQ_CH_CAP_MODEM_TX

#define ARQ_CH_CAP_MODEM_TX   128

ARQ_CH_CAP_SHUTDOWN

#define ARQ_CH_CAP_SHUTDOWN   1

ARQ_CH_CAP_TCP_CMD

#define ARQ_CH_CAP_TCP_CMD   64

ARQ_CH_CAP_TCP_PAYLOAD

#define ARQ_CH_CAP_TCP_PAYLOAD   128

ARQ_CH_CAP_TCP_STATUS

#define ARQ_CH_CAP_TCP_STATUS   128

Function Documentation

arq_channel_bus_close()

void arq_channel_bus_close

(

arq_channel_bus_t *

bus

)

Close all ARQ channel endpoints to stop producers/consumers.

Parameters

bus	Bus to close.

arq_channel_bus_dispose()

void arq_channel_bus_dispose

(

arq_channel_bus_t *

bus

)

Dispose ARQ channel resources.

Parameters

bus	Bus to dispose.

arq_channel_bus_init()

int arq_channel_bus_init

(

arq_channel_bus_t *

bus

)

Initialize ARQ channel bus.

Parameters

bus	Bus structure to initialize.

Returns

0 on success, negative on failure.

arq_channel_bus_recv_cmd()

int arq_channel_bus_recv_cmd	(	arq_channel_bus_t *	bus,
		arq_cmd_msg_t *	msg
	)

Receive next TCP command from ARQ bus.

Parameters

bus	Bus instance.
msg	Output command message.

Returns

0 on success, negative on closed/error.

arq_channel_bus_recv_payload()

int arq_channel_bus_recv_payload	(	arq_channel_bus_t *	bus,
		arq_bytes_msg_t *	msg
	)

Receive next TCP payload message from ARQ bus.

Parameters

bus	Bus instance.
msg	Output payload message.

Returns

0 on success, negative on closed/error.

arq_channel_bus_try_send_cmd()

int arq_channel_bus_try_send_cmd	(	arq_channel_bus_t *	bus,
		const arq_cmd_msg_t *	msg
	)

Try to enqueue a TCP control command into ARQ bus.

Parameters

bus	Bus instance.
msg	Command message.

Returns

0 on success, negative if full/error.

arq_channel_bus_try_send_payload()

int arq_channel_bus_try_send_payload	(	arq_channel_bus_t *	bus,
		const uint8_t *	data,
		size_t	len
	)

Try to enqueue TCP payload bytes into ARQ bus.

Parameters

bus	Bus instance.
data	Payload bytes.
len	Payload length in bytes.

Returns

0 on success, negative if full/error.
