arq_timing.h File Reference

#include <stdbool.h>
#include <stdint.h>

Include dependency graph for arq_timing.h:

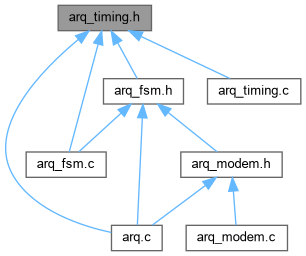

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	arq_timing_ctx_t

Functions
void	arq_timing_init (arq_timing_ctx_t *ctx)
	Zero-initialise a timing context at session start.
void	arq_timing_record_tx_queue (arq_timing_ctx_t *ctx, int seq, int mode, int backlog_bytes, int payload_bytes)
	Record frame queued for TX; logs [TMG] tx_queue.
void	arq_timing_record_tx_start (arq_timing_ctx_t *ctx, int seq, int mode, int backlog_bytes)
	Record PTT ON; logs [TMG] tx_start.
void	arq_timing_record_tx_end (arq_timing_ctx_t *ctx, int seq)
	Record PTT OFF; logs [TMG] tx_end with duration.
void	arq_timing_record_ack_rx (arq_timing_ctx_t *ctx, int seq, uint8_t ack_delay_raw, int peer_snr_x10)
	Record ACK received; computes and logs OTA RTT.
void	arq_timing_record_data_rx (arq_timing_ctx_t *ctx, int seq, int bytes, int snr_x10)
	Record data frame decoded (IRS side); logs [TMG] data_rx.
void	arq_timing_record_ack_tx (arq_timing_ctx_t *ctx, int seq)
	Record ACK TX started (IRS side); logs [TMG] ack_tx.
void	arq_timing_record_retry (arq_timing_ctx_t *ctx, int seq, int attempt, const char *reason)
	Record a retry event; logs [TMG] retry.
void	arq_timing_record_turn (arq_timing_ctx_t *ctx, bool to_iss, const char *reason)
	Record turn direction change; logs [TMG] turn.
void	arq_timing_record_connect (arq_timing_ctx_t *ctx, int mode)
	Record session connected; logs [TMG] connect.
void	arq_timing_record_disconnect (arq_timing_ctx_t *ctx, const char *reason)
	Record session disconnected; logs [TMG] disconnect and session totals.

Function Documentation

arq_timing_init()

void arq_timing_init

(

arq_timing_ctx_t *

ctx

)

Zero-initialise a timing context at session start.

arq_timing_record_ack_rx()

void arq_timing_record_ack_rx	(	arq_timing_ctx_t *	ctx,
		int	seq,
		uint8_t	ack_delay_raw,
		int	peer_snr_x10
	)

Record ACK received; computes and logs OTA RTT.

Parameters

ctx	Timing context.
seq	TX sequence number being ACKed.
ack_delay_raw	Wire-encoded ack_delay (10ms units, 0=unknown).
peer_snr_x10	Peer-reported SNR * 10.

arq_timing_record_ack_tx()

void arq_timing_record_ack_tx	(	arq_timing_ctx_t *	ctx,
		int	seq
	)

Record ACK TX started (IRS side); logs [TMG] ack_tx.

arq_timing_record_connect()

void arq_timing_record_connect	(	arq_timing_ctx_t *	ctx,
		int	mode
	)

Record session connected; logs [TMG] connect.

arq_timing_record_data_rx()

void arq_timing_record_data_rx	(	arq_timing_ctx_t *	ctx,
		int	seq,
		int	bytes,
		int	snr_x10
	)

Record data frame decoded (IRS side); logs [TMG] data_rx.

arq_timing_record_disconnect()

void arq_timing_record_disconnect	(	arq_timing_ctx_t *	ctx,
		const char *	reason
	)

Record session disconnected; logs [TMG] disconnect and session totals.

arq_timing_record_retry()

void arq_timing_record_retry	(	arq_timing_ctx_t *	ctx,
		int	seq,
		int	attempt,
		const char *	reason
	)

Record a retry event; logs [TMG] retry.

Parameters

ctx	Timing context.
seq	TX sequence number.
attempt	1-based retry number.
reason	Short reason string (e.g. "timeout", "nack").

arq_timing_record_turn()

void arq_timing_record_turn	(	arq_timing_ctx_t *	ctx,
		bool	to_iss,
		const char *	reason
	)

Record turn direction change; logs [TMG] turn.

Parameters

ctx	Timing context.
to_iss	true = becoming ISS, false = becoming IRS.
reason	"piggyback", "turn_req", "startup" etc.

arq_timing_record_tx_end()

void arq_timing_record_tx_end	(	arq_timing_ctx_t *	ctx,
		int	seq
	)

Record PTT OFF; logs [TMG] tx_end with duration.

arq_timing_record_tx_queue()

void arq_timing_record_tx_queue	(	arq_timing_ctx_t *	ctx,
		int	seq,
		int	mode,
		int	backlog_bytes,
		int	payload_bytes
	)

Record frame queued for TX; logs [TMG] tx_queue.

Parameters

ctx	Timing context.
seq	TX sequence number.
mode	FreeDV mode used for TX.
backlog_bytes	Application bytes remaining in TX queue.
payload_bytes	Actual application bytes in this frame (0 for retransmits).

arq_timing_record_tx_start()

void arq_timing_record_tx_start	(	arq_timing_ctx_t *	ctx,
		int	seq,
		int	mode,
		int	backlog_bytes
	)

Record PTT ON; logs [TMG] tx_start.
