arq_modem.c File Reference

#include "arq_modem.h"
#include "arq_protocol.h"
#include <pthread.h>
#include <string.h>
#include <time.h>
#include <errno.h>
#include "../modem/freedv/freedv_api.h"

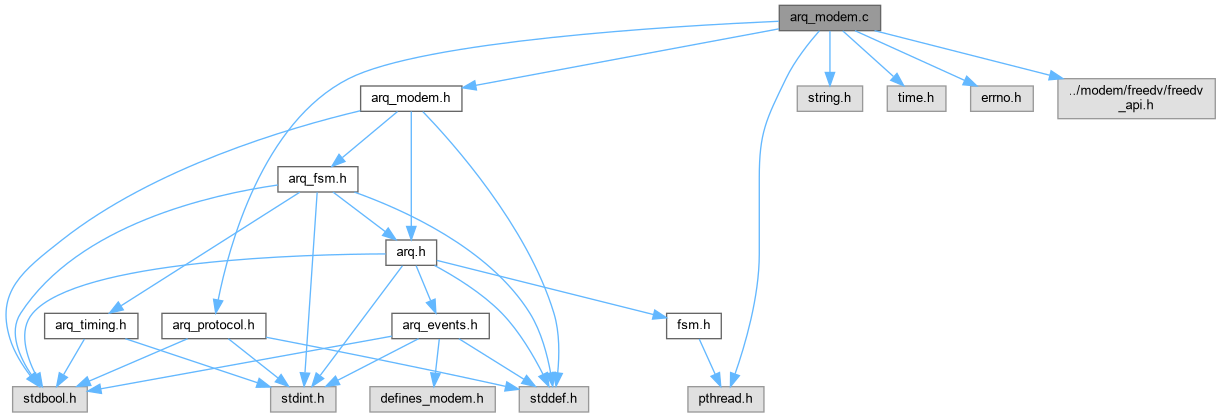

Include dependency graph for arq_modem.c:

Macros
#define	MAX_QUEUE_CAPACITY   128

Functions
int	arq_modem_queue_init (size_t capacity)
	Initialise the action queue.
void	arq_modem_queue_shutdown (void)
	Flush and destroy the action queue.
int	arq_modem_enqueue (const arq_action_t *action)
	Enqueue a modem action (called from FSM action callbacks).
bool	arq_modem_dequeue (arq_action_t *action, int timeout_ms)
	Dequeue the next modem action (called from modem TX worker).
void	arq_modem_set_event_fn (void(*fn)(int mode, bool ptt_on))
	Register the PTT event injection function (called from arq.c init).
void	arq_modem_ptt_on (int mode, size_t frame_size)
	Notify ARQ that PTT has gone ON.
void	arq_modem_ptt_off (void)
	Notify ARQ that PTT has gone OFF.
int	arq_modem_preferred_rx_mode (const arq_session_t *sess)
	Return the preferred RX FreeDV mode for the current session state.
int	arq_modem_preferred_tx_mode (const arq_session_t *sess)
	Return the preferred TX FreeDV mode for the current session state.

Variables
static arq_action_t	g_queue [MAX_QUEUE_CAPACITY]
static size_t	g_head
static size_t	g_tail
static size_t	g_count
static size_t	g_cap
static pthread_mutex_t	g_qmtx = PTHREAD_MUTEX_INITIALIZER
static pthread_cond_t	g_qcond = PTHREAD_COND_INITIALIZER
static bool	g_shutdown = false
static void(*	g_inject_event )(int mode, bool ptt_on) = NULL

Macro Definition Documentation

MAX_QUEUE_CAPACITY

#define MAX_QUEUE_CAPACITY   128

Function Documentation

arq_modem_dequeue()

bool arq_modem_dequeue	(	arq_action_t *	action,
		int	timeout_ms
	)

Dequeue the next modem action (called from modem TX worker).

Blocks up to timeout_ms milliseconds waiting for an action.

Parameters

action	Output action.
timeout_ms	Wait timeout in milliseconds.

Returns

true if an action was dequeued, false on timeout.

arq_modem_enqueue()

int arq_modem_enqueue

(

const arq_action_t *

action

)

Enqueue a modem action (called from FSM action callbacks).

Returns

0 on success, -1 if queue full.

arq_modem_preferred_rx_mode()

int arq_modem_preferred_rx_mode

(

const arq_session_t *

sess

)

Return the preferred RX FreeDV mode for the current session state.

Parameters

sess	Current session (read-only).

Returns

FREEDV_MODE_* constant.

arq_modem_preferred_tx_mode()

int arq_modem_preferred_tx_mode

(

const arq_session_t *

sess

)

Return the preferred TX FreeDV mode for the current session state.

Parameters

sess	Current session (read-only).

Returns

FREEDV_MODE_* constant.

arq_modem_ptt_off()

void arq_modem_ptt_off

(

void

)

Notify ARQ that PTT has gone OFF.

arq_modem_ptt_on()

void arq_modem_ptt_on	(	int	mode,
		size_t	frame_size
	)

Notify ARQ that PTT has gone ON.

Parameters

mode	FreeDV mode of the frame now on air.
frame_size	Frame size in bytes.

arq_modem_queue_init()

int arq_modem_queue_init

(

size_t

capacity

)

Initialise the action queue.

Parameters

capacity

Maximum number of pending actions.

Returns

0 on success, -1 on allocation failure.

arq_modem_queue_shutdown()

void arq_modem_queue_shutdown

(

void

)

Flush and destroy the action queue.

arq_modem_set_event_fn()

void arq_modem_set_event_fn

(

void(*)(int mode, bool ptt_on)

fn

)

Register the PTT event injection function (called from arq.c init).

Parameters

fn	Callback: mode >= 0 and ptt_on=true → TX_STARTED; ptt_on=false → TX_COMPLETE.

Variable Documentation

g_cap

size_t g_cap

static

g_count

size_t g_count

static

g_head

size_t g_head

static

g_inject_event

void(* g_inject_event) (int mode, bool ptt_on) ( int  mode, bool  ptt_on  ) = NULL

static

g_qcond

pthread_cond_t g_qcond = PTHREAD_COND_INITIALIZER

static

g_qmtx

pthread_mutex_t g_qmtx = PTHREAD_MUTEX_INITIALIZER

static

g_queue

arq_action_t g_queue[MAX_QUEUE_CAPACITY]

static

g_shutdown

bool g_shutdown = false

static

g_tail

size_t g_tail

static
