arq_fsm.h File Reference

#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include "arq.h"
#include "arq_timing.h"

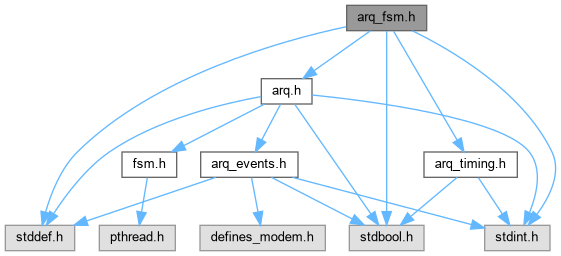

Include dependency graph for arq_fsm.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	arq_event_t
	ARQ event with all possible payload fields. More...
struct	arq_session_t
struct	arq_fsm_callbacks_t

Enumerations
enum	arq_conn_state_t {   ARQ_CONN_DISCONNECTED = 0 , ARQ_CONN_LISTENING = 1 , ARQ_CONN_CALLING = 2 , ARQ_CONN_ACCEPTING = 3 ,   ARQ_CONN_CONNECTED = 4 , ARQ_CONN_DISCONNECTING = 5 , ARQ_CONN__COUNT }
enum	arq_dflow_state_t {   ARQ_DFLOW_IDLE_ISS = 0 , ARQ_DFLOW_DATA_TX = 1 , ARQ_DFLOW_WAIT_ACK = 2 , ARQ_DFLOW_IDLE_IRS = 3 ,   ARQ_DFLOW_DATA_RX = 4 , ARQ_DFLOW_ACK_TX = 5 , ARQ_DFLOW_TURN_REQ_TX = 6 , ARQ_DFLOW_TURN_REQ_WAIT = 7 ,   ARQ_DFLOW_TURN_ACK_TX = 8 , ARQ_DFLOW_MODE_REQ_TX = 9 , ARQ_DFLOW_MODE_REQ_WAIT = 10 , ARQ_DFLOW_MODE_ACK_TX = 11 ,   ARQ_DFLOW_KEEPALIVE_TX = 12 , ARQ_DFLOW_KEEPALIVE_WAIT = 13 , ARQ_DFLOW__COUNT }
enum	arq_role_t { ARQ_ROLE_NONE = 0 , ARQ_ROLE_CALLER = 1 , ARQ_ROLE_CALLEE = 2 }
enum	arq_event_id_t {   ARQ_EV_APP_LISTEN = 0 , ARQ_EV_APP_STOP_LISTEN = 1 , ARQ_EV_APP_CONNECT = 2 , ARQ_EV_APP_DISCONNECT = 3 ,   ARQ_EV_APP_DATA_READY = 4 , ARQ_EV_RX_CALL = 5 , ARQ_EV_RX_ACCEPT = 6 , ARQ_EV_RX_ACK = 7 ,   ARQ_EV_RX_DATA = 8 , ARQ_EV_RX_DISCONNECT = 9 , ARQ_EV_RX_TURN_REQ = 10 , ARQ_EV_RX_TURN_ACK = 11 ,   ARQ_EV_RX_MODE_REQ = 12 , ARQ_EV_RX_MODE_ACK = 13 , ARQ_EV_RX_KEEPALIVE = 14 , ARQ_EV_RX_KEEPALIVE_ACK = 15 ,   ARQ_EV_TIMER_RETRY = 16 , ARQ_EV_TIMER_TIMEOUT = 17 , ARQ_EV_TIMER_ACK = 18 , ARQ_EV_TIMER_PEER_BACKLOG = 19 ,   ARQ_EV_TIMER_KEEPALIVE = 20 , ARQ_EV_TX_STARTED = 21 , ARQ_EV_TX_COMPLETE = 22 , ARQ_EV__COUNT }

Functions
void	arq_fsm_set_callbacks (const arq_fsm_callbacks_t *cbs)
	Register FSM action callbacks (call once before first dispatch).
void	arq_fsm_set_timing (arq_timing_ctx_t *timing)
	Register timing context for recording (call once at init).
void	arq_fsm_init (arq_session_t *sess)
	Initialise a session structure to DISCONNECTED state.
void	arq_fsm_dispatch (arq_session_t *sess, const arq_event_t *event)
	Dispatch an event through both FSM levels.
int	arq_fsm_timeout_ms (const arq_session_t *sess, uint64_t now)
	Return milliseconds until the next deadline, or INT_MAX if idle.
const char *	arq_conn_state_name (arq_conn_state_t s)
	Human-readable name for a connection state (for log output).
const char *	arq_dflow_state_name (arq_dflow_state_t s)
	Human-readable name for a data-flow state (for log output).
const char *	arq_event_name (arq_event_id_t ev)
	Human-readable name for an event (for log output).

Enumeration Type Documentation

arq_conn_state_t

enum arq_conn_state_t

Enumerator
ARQ_CONN_DISCONNECTED
ARQ_CONN_LISTENING
ARQ_CONN_CALLING
ARQ_CONN_ACCEPTING
ARQ_CONN_CONNECTED
ARQ_CONN_DISCONNECTING
ARQ_CONN__COUNT

arq_dflow_state_t

enum arq_dflow_state_t

Enumerator
ARQ_DFLOW_IDLE_ISS
ARQ_DFLOW_DATA_TX
ARQ_DFLOW_WAIT_ACK
ARQ_DFLOW_IDLE_IRS
ARQ_DFLOW_DATA_RX
ARQ_DFLOW_ACK_TX
ARQ_DFLOW_TURN_REQ_TX
ARQ_DFLOW_TURN_REQ_WAIT
ARQ_DFLOW_TURN_ACK_TX
ARQ_DFLOW_MODE_REQ_TX
ARQ_DFLOW_MODE_REQ_WAIT
ARQ_DFLOW_MODE_ACK_TX
ARQ_DFLOW_KEEPALIVE_TX
ARQ_DFLOW_KEEPALIVE_WAIT
ARQ_DFLOW__COUNT

arq_event_id_t

enum arq_event_id_t

Enumerator
ARQ_EV_APP_LISTEN
ARQ_EV_APP_STOP_LISTEN
ARQ_EV_APP_CONNECT
ARQ_EV_APP_DISCONNECT
ARQ_EV_APP_DATA_READY
ARQ_EV_RX_CALL
ARQ_EV_RX_ACCEPT
ARQ_EV_RX_ACK
ARQ_EV_RX_DATA
ARQ_EV_RX_DISCONNECT
ARQ_EV_RX_TURN_REQ
ARQ_EV_RX_TURN_ACK
ARQ_EV_RX_MODE_REQ
ARQ_EV_RX_MODE_ACK
ARQ_EV_RX_KEEPALIVE
ARQ_EV_RX_KEEPALIVE_ACK
ARQ_EV_TIMER_RETRY
ARQ_EV_TIMER_TIMEOUT
ARQ_EV_TIMER_ACK
ARQ_EV_TIMER_PEER_BACKLOG
ARQ_EV_TIMER_KEEPALIVE
ARQ_EV_TX_STARTED
ARQ_EV_TX_COMPLETE
ARQ_EV__COUNT

arq_role_t

enum arq_role_t

Enumerator
ARQ_ROLE_NONE
ARQ_ROLE_CALLER
ARQ_ROLE_CALLEE

Function Documentation

arq_conn_state_name()

const char * arq_conn_state_name

(

arq_conn_state_t

s

)

Human-readable name for a connection state (for log output).

arq_dflow_state_name()

const char * arq_dflow_state_name

(

arq_dflow_state_t

s

)

Human-readable name for a data-flow state (for log output).

arq_event_name()

const char * arq_event_name

(

arq_event_id_t

ev

)

Human-readable name for an event (for log output).

arq_fsm_dispatch()

void arq_fsm_dispatch	(	arq_session_t *	sess,
		const arq_event_t *	event
	)

Dispatch an event through both FSM levels.

Runs transition logic, calls action callbacks, and updates deadlines. Must be called from the single ARQ event-loop thread (no locking inside).

Parameters

sess	Active session.
event	Event to process.

arq_fsm_init()

void arq_fsm_init

(

arq_session_t *

sess

)

Initialise a session structure to DISCONNECTED state.

Parameters

sess	Session to initialise.

arq_fsm_set_callbacks()

void arq_fsm_set_callbacks

(

const arq_fsm_callbacks_t *

cbs

)

Register FSM action callbacks (call once before first dispatch).

arq_fsm_set_timing()

void arq_fsm_set_timing

(

arq_timing_ctx_t *

timing

)

Register timing context for recording (call once at init).

Parameters

timing

Pointer to the arq_timing_ctx_t to record into.

arq_fsm_timeout_ms()

int arq_fsm_timeout_ms	(	const arq_session_t *	sess,
		uint64_t	now
	)

Return milliseconds until the next deadline, or INT_MAX if idle.

Used by the event loop's blocking wait to set a poll timeout.

Parameters

sess	Active session.
now	Current monotonic time in milliseconds.

Returns

Milliseconds to wait (0 = fire immediately, INT_MAX = no deadline).
