#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include "fsm.h"
#include "arq_events.h"

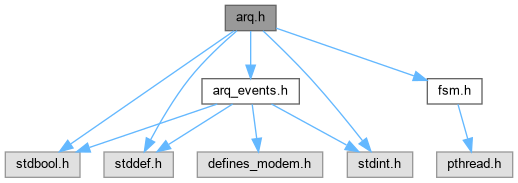

Include dependency graph for arq.h:

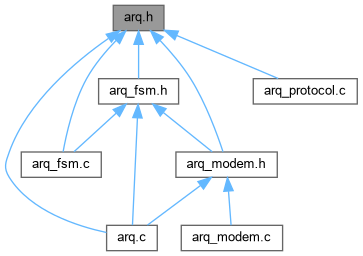

This graph shows which files directly or indirectly include this file:

Data Structures
struct	arq_info
	Runtime ARQ connection and mode state shared across modules. More...

struct	arq_action_t
	Single modem action item popped by modem TX worker. More...

struct	arq_runtime_snapshot_t
	Snapshot of current ARQ runtime state for telemetry/decision making. More...

Macros
#define	CALLSIGN_MAX_SIZE 16

#define	RX 0

#define	TX 1

#define	HEADER_SIZE 1

#define	PACKET_ARQ_CONTROL 0x00

#define	PACKET_ARQ_DATA 0x01

#define	PACKET_ARQ_CALL 0x02

#define	PACKET_BROADCAST_CONTROL 0x03

#define	PACKET_BROADCAST_PAYLOAD 0x04

Enumerations
enum	arq_action_type_t { ARQ_ACTION_NONE = 0 , ARQ_ACTION_TX_CONTROL = 1 , ARQ_ACTION_TX_PAYLOAD = 2 , ARQ_ACTION_MODE_SWITCH = 3 }
	Action types emitted by ARQ for modem worker execution. More...

Functions
int	arq_init (size_t frame_size, int mode)
	Initialize ARQ subsystem.

void	arq_shutdown ()
	Shut down ARQ workers and release ARQ resources.

void	arq_tick_1hz (void)
	Execute 1 Hz ARQ maintenance tick.

void	arq_post_event (int event)
	Post an FSM event to ARQ.

bool	arq_is_link_connected (void)
	Check whether ARQ link is connected.

int	arq_queue_data (const uint8_t *data, size_t len)
	Queue outbound payload bytes for ARQ transmission.

int	arq_get_tx_backlog_bytes (void)
	Get pending outbound payload backlog.

int	arq_get_speed_level (void)
	Get current ARQ speed level (gear).

int	arq_get_payload_mode (void)
	Get active ARQ payload mode.

int	arq_get_control_mode (void)
	Get active ARQ control mode.

int	arq_get_preferred_rx_mode (void)
	Get ARQ-preferred receive mode for modem.

int	arq_get_preferred_tx_mode (void)
	Get ARQ-preferred transmit mode for modem.

void	arq_set_active_modem_mode (int mode, size_t frame_size)
	Inform ARQ of modem mode/frame size actually active in modem.

bool	arq_handle_incoming_connect_frame (uint8_t *data, size_t frame_size)
	Handle incoming compressed CALL/ACCEPT frame.

void	arq_handle_incoming_frame (uint8_t *data, size_t frame_size, float rx_snr)
	Handle incoming regular ARQ control/data frame.

void	arq_update_link_metrics (int sync, float snr, int rx_status, bool frame_decoded)
	Feed decoder/link metrics into ARQ adaptation.

bool	arq_try_dequeue_action (arq_action_t *action)
	Try to dequeue next modem action without blocking.

bool	arq_wait_dequeue_action (arq_action_t *action, int timeout_ms)
	Wait for next modem action.

bool	arq_get_runtime_snapshot (arq_runtime_snapshot_t *snapshot)
	Copy ARQ runtime snapshot.

int	arq_submit_tcp_cmd (const arq_cmd_msg_t *cmd)
	Submit parsed control command from TCP bridge to ARQ.

int	arq_submit_tcp_payload (const uint8_t *data, size_t len)
	Submit payload bytes from TCP bridge to ARQ.

void	clear_connection_data ()
	Clear legacy ARQ connection state and buffers.

void	reset_arq_info (arq_info *arq_conn)
	Reset external arq_info structure.

void	call_remote ()
	Trigger outgoing call attempt using current ARQ addresses.

void	callee_accept_connection ()
	Trigger callee-side accept flow in compatibility path.

Variables
arq_info	arq_conn

fsm_handle	arq_fsm

Macro Definition Documentation

◆ CALLSIGN_MAX_SIZE

#define CALLSIGN_MAX_SIZE 16

◆ HEADER_SIZE

#define HEADER_SIZE 1

◆ PACKET_ARQ_CALL

#define PACKET_ARQ_CALL 0x02

◆ PACKET_ARQ_CONTROL

#define PACKET_ARQ_CONTROL 0x00

◆ PACKET_ARQ_DATA

#define PACKET_ARQ_DATA 0x01

◆ PACKET_BROADCAST_CONTROL

#define PACKET_BROADCAST_CONTROL 0x03

◆ PACKET_BROADCAST_PAYLOAD

#define PACKET_BROADCAST_PAYLOAD 0x04

◆ RX

#define RX 0

◆ TX

#define TX 1

Enumeration Type Documentation

◆ arq_action_type_t

enum arq_action_type_t

Action types emitted by ARQ for modem worker execution.

Enumerator
ARQ_ACTION_NONE
ARQ_ACTION_TX_CONTROL
ARQ_ACTION_TX_PAYLOAD
ARQ_ACTION_MODE_SWITCH

Function Documentation

◆ arq_get_control_mode()

int arq_get_control_mode ( void )

Get active ARQ control mode.

Returns: FreeDV control mode value.

◆ arq_get_payload_mode()

int arq_get_payload_mode ( void )

Get active ARQ payload mode.

Returns: FreeDV payload mode value.

◆ arq_get_preferred_rx_mode()

int arq_get_preferred_rx_mode ( void )

Get ARQ-preferred receive mode for modem.

Returns: FreeDV mode value.

◆ arq_get_preferred_tx_mode()

int arq_get_preferred_tx_mode ( void )

Get ARQ-preferred transmit mode for modem.

Returns: FreeDV mode value.

◆ arq_get_runtime_snapshot()

bool arq_get_runtime_snapshot ( arq_runtime_snapshot_t * snapshot )

Copy ARQ runtime snapshot.

Parameters

snapshot Output snapshot pointer.

Returns: true when snapshot contains initialized state.

◆ arq_get_speed_level()

int arq_get_speed_level ( void )

Get current ARQ speed level (gear).

Returns: Speed level index.

◆ arq_get_tx_backlog_bytes()

int arq_get_tx_backlog_bytes ( void )

Get pending outbound payload backlog.

Returns: Backlog size in bytes.

◆ arq_handle_incoming_connect_frame()

bool arq_handle_incoming_connect_frame	(	uint8_t *	data,
		size_t	frame_size
	)

Handle incoming compressed CALL/ACCEPT frame.

Parameters

data	Frame bytes.
frame_size	Frame length in bytes.

Returns: true if frame was handled by ARQ connect path.

◆ arq_handle_incoming_frame()

void arq_handle_incoming_frame	(	uint8_t *	data,
		size_t	frame_size,
		float	rx_snr
	)

Handle incoming regular ARQ control/data frame.

Parameters

data	Frame bytes.
frame_size	Frame length in bytes.
rx_snr	Local receive SNR at decode time (dB); 0.0 = unknown.

◆ arq_init()

int arq_init	(	size_t	frame_size,
		int	mode
	)

Initialize ARQ subsystem.

Parameters

frame_size	Active modem frame size in bytes.
mode	Initial modem mode.

Returns: 0 on success, non-zero on failure.

◆ arq_is_link_connected()

bool arq_is_link_connected ( void )

Check whether ARQ link is connected.

Returns: true when connected; otherwise false.

◆ arq_post_event()

void arq_post_event ( int event )

Post an FSM event to ARQ.

Parameters

event Event identifier from fsm.h.

◆ arq_queue_data()

int arq_queue_data	(	const uint8_t *	data,
		size_t	len
	)

Queue outbound payload bytes for ARQ transmission.

Parameters

data	Pointer to payload bytes.
len	Number of bytes to queue.

Returns: Number of bytes queued, or negative on error.

◆ arq_set_active_modem_mode()

void arq_set_active_modem_mode	(	int	mode,
		size_t	frame_size
	)

Inform ARQ of modem mode/frame size actually active in modem.

Parameters

mode	Active FreeDV mode.
frame_size	Active frame size in bytes.

◆ arq_shutdown()

void arq_shutdown ( )

Shut down ARQ workers and release ARQ resources.

◆ arq_submit_tcp_cmd()

int arq_submit_tcp_cmd ( const arq_cmd_msg_t * cmd )

Submit parsed control command from TCP bridge to ARQ.

Parameters

cmd	Command message.

Returns: 0 on success, negative on queue/error.

◆ arq_submit_tcp_payload()

int arq_submit_tcp_payload	(	const uint8_t *	data,
		size_t	len
	)

Submit payload bytes from TCP bridge to ARQ.

Parameters

data	Payload bytes.
len	Payload length in bytes.

Returns: 0 on success, negative on queue/error.

◆ arq_tick_1hz()

void arq_tick_1hz ( void )

Execute 1 Hz ARQ maintenance tick.

◆ arq_try_dequeue_action()

bool arq_try_dequeue_action ( arq_action_t * action )

Try to dequeue next modem action without blocking.

Parameters

action Output action item.

Returns: true if an action was dequeued.

◆ arq_update_link_metrics()

void arq_update_link_metrics	(	int	sync,
		float	snr,
		int	rx_status,
		bool	frame_decoded
	)

Feed decoder/link metrics into ARQ adaptation.

Parameters

sync	Decoder sync flag.
snr	Estimated SNR.
rx_status	Decoder RX status flags.
frame_decoded	True when a frame decoded this cycle.

◆ arq_wait_dequeue_action()

bool arq_wait_dequeue_action	(	arq_action_t *	action,
		int	timeout_ms
	)

Wait for next modem action.

Parameters

action	Output action item.
timeout_ms	Wait timeout in milliseconds.

Returns: true if an action was dequeued.

◆ call_remote()

void call_remote ( )

Trigger outgoing call attempt using current ARQ addresses.

◆ callee_accept_connection()

void callee_accept_connection ( )

Trigger callee-side accept flow in compatibility path.

◆ clear_connection_data()

void clear_connection_data ( )

Clear legacy ARQ connection state and buffers.

◆ reset_arq_info()

void reset_arq_info ( arq_info * arq_conn )

Reset external arq_info structure.

Parameters

arq_conn Pointer to structure to reset.

Variable Documentation

◆ arq_conn

arq_info arq_conn

extern

◆ arq_fsm

fsm_handle arq_fsm

extern
