HERMES Description

This section briefly introduces what HERMES system can do today. HERMES is basically composed of:

• HF transceiver and associated antenna, connected to a computer;
• Computer running the HERMES free software stack;
• The computer provides local connectivity through WiFi (or other local-area network technology)

Rhizomatica developed the HERMES hardware which embedds all the needed parts for a simple to use HF telecomunication equipment. Figure 3.1 and 3.2 contains a picture of the HERMES box. The HERMES box contains everything needed for joining a HERMES network, while users have access to the HERMES services over WiFi or ethernet.

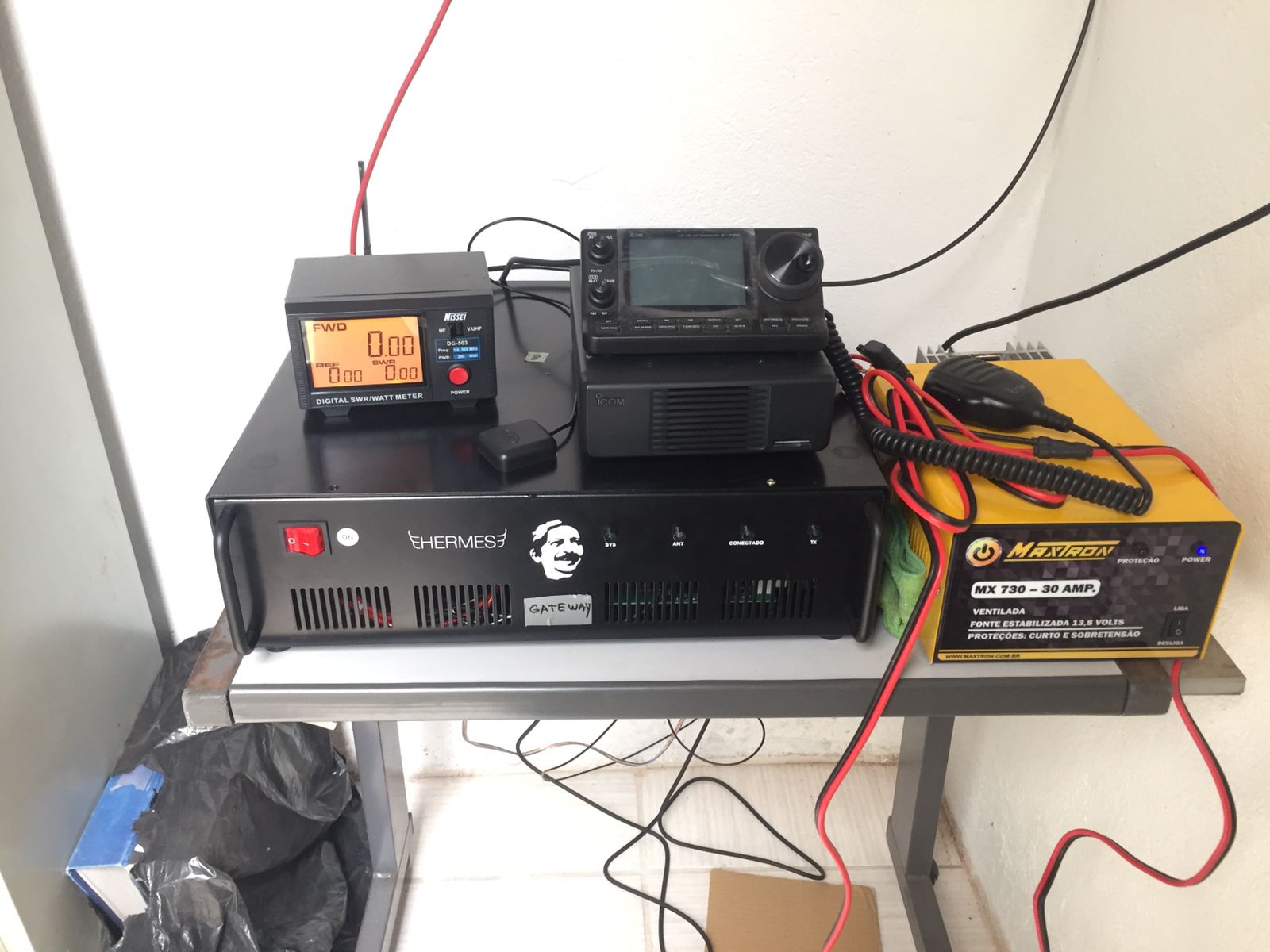

Figure 3.1: The HERMES hardware at a “gateway” location, a power supply (yellow), a standard HF voice radio (top right) and a wattmeter (top left).

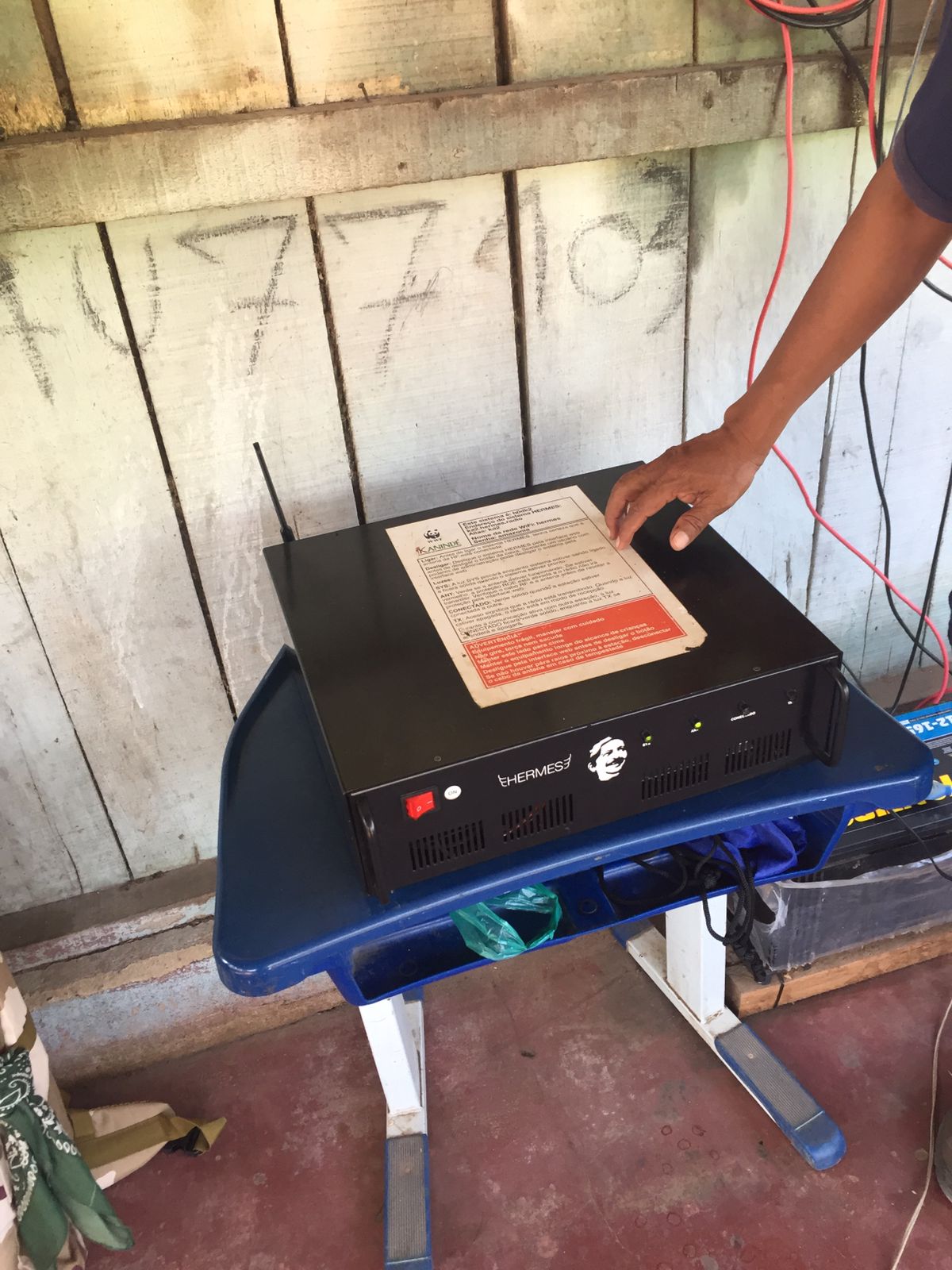

Figure 3.2: The HERMES hardware at a “remote” location, with a battery appearing the bottom left.

HERMES uses GNU UUCP with Debian downstream patches (version 1.07-27 or greater, available at: https://packages.debian.org/bullseye/uucp).

Specific HERMES network stack source code, radio firmware and other system components are available at:

• Main network components and firmware: https://github.com/Rhizomatica/hermes-net
• REST API: https://github.com/Rhizomatica/hermes-api
• Web GUI: https://github.com/Rhizomatica/hermes-gui
• Documentation: https://github.com/Rhizomatica/hermes-documentation
